XGRIDS Lixel K1



Ready to use in minutes
Compact portable 3D scanner

CONTACT

Compact, powerful, and precise.

Generate richly colored, finely detailed 3D models with unmatched ease and speed.

Why K1 outperforms traditional methods

Tripod scanning requires days on site, expensive specialists, and weeks of post-processing. Projects stall while waiting for results.

More than 5 days → A few hours

Real-time color models eliminate post-processing delays.

Heavy settings→Walking

Portable operation weighing less than <1 kg, without tripods or specialists

Professional results

Accuracy of ±1.2 cm at one-third the cost of the equipment

Instant decisions

Review the results on site and eliminate repeat visits.

Specifications promised by Devlier

Multi-SLAM algorithms ensure reliable capture in challenging environments.
48 MP panoramic cameras capture rich color data, while 360° LiDAR provides full spatial coverage at 200,000 pt/s. IP54 rating allows for use in real-world conditions.

Features
  • Accuracy of ±1.2 cm
  • 200,000 points/second
  • Range of 40 m
  • 1.5-hour battery life
  • 48 MP panoramic cameras

  • <1 kg in weight

Three steps to professional results

  • Scan – Walk and capture with the push of a button. Use LixelGO, the companion mobile app for real-time scanner control, mission planning, and field supervision.
  • Process – Automatic generation of point clouds in real time, or additional processing with LixelStudio or LixelCyberColor.
  • Deliver – Export to CAD/BIM or publish interactive 3D models.

Complete solution, maximum flexibility

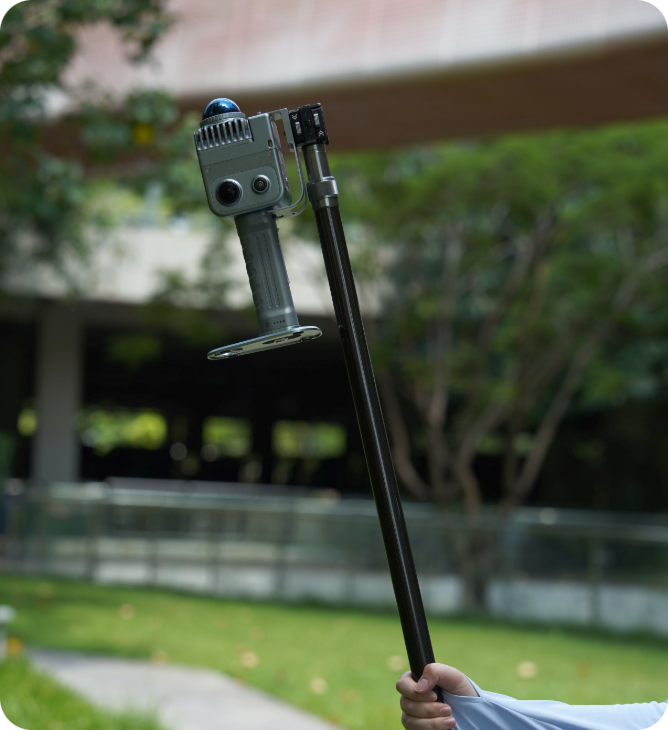

Extension pole

RTK

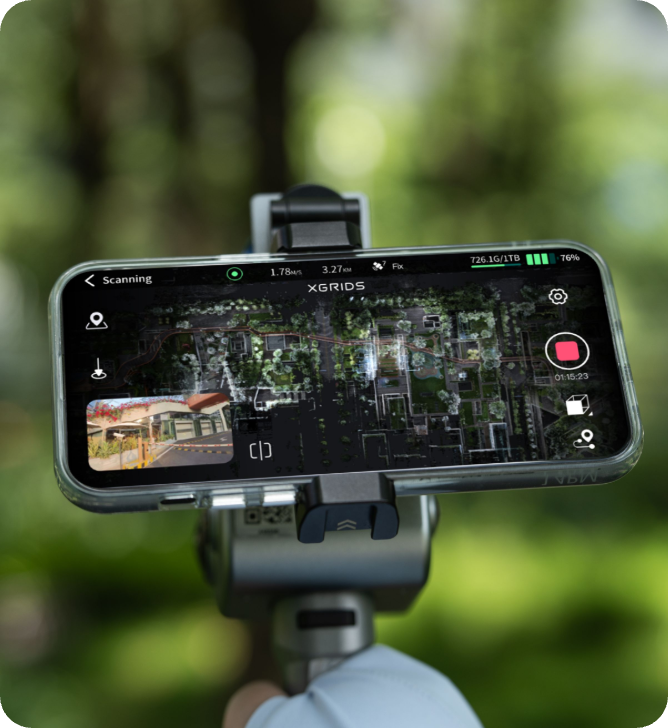

Phone mount

SOFTWARE

Lixel Studio

Professional processing of point clouds with measurement, editing, and CAD export tools.

LCC Studio

Generation of photorealistic 3DGS models powered by AI with a 90% reduction in file size.

Industries

  • Architecture and construction: interior documentation, topographic surveys, progress supervision, BIM integration.
  • Infrastructure and resources: volume calculations, mining surveys, facility documentation.
  • Real estate and properties: property valuation, renovation planning, digital twins.
  • Cultural heritage: preservation of artifacts, digitization of museums, historical documentation.
  • Environmental conservation: ecosystem monitoring, climate impact studies, habitat conservation.
Specifications

Device Performance

Parameter
Specification
Energy Input
14.4V
Energy Consumption
<20W
Weight
1kg
Data Interface
USB 3.1 Gen2
Storage Capacity
256G TF card
Connection Mode
Wi-Fi/Bluetooth (2.4G & 5G)
Operating Temperature
-20°C to 50°C
Protection Level
IP54
Product Housing
Navigation Aluminum
Power Supply
Quick-release battery / External power
Operating Time
1.5h
Battery Capacity
28.8Wh
Number of Cameras
4
Vision-Assisted Positioning
Supported
WiFi Distance from the APP
20m
RTK module
Supported

LiDAR

Parameter
Specification
Relative Accuracy
1.2cm
Laser Class
Class 1 / 905 nm
Repeat Accuracy
2cm
Absolute Precision
3cm
Working Range
0.1m – 40m @10%, 70m @80%
Horizontal Accuracy
0.015°
Scan Mode
Mobile
LiDAR Field of View (FOV)
360° * -7° to +52°
Scanning Speed
200,000 points/s

Vision and Data Module
Parameter
Specification
Camera FOV
360° HDV color panorama * 360°
Resolution of the Camera
48 MP x2
Panoramic Image Resolution
Max. 56MP
Calculation Method
Real-time calculation / Mixed calculation
Calculation Software
Lixel Studio (post-processing for Windows)
Point Cloud Format
.las
Color Point Cloud
Supported
