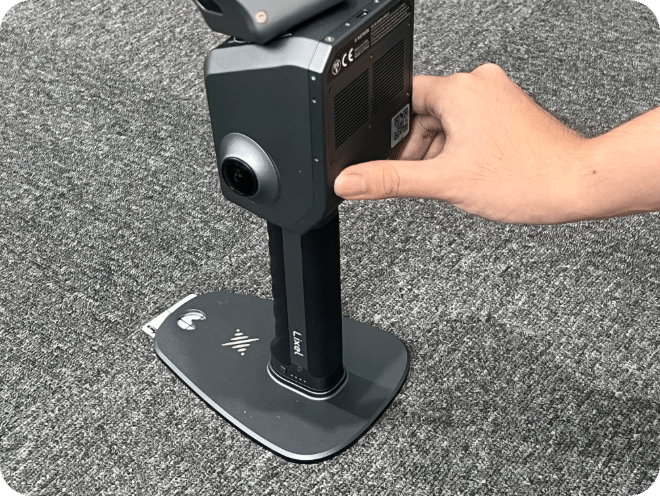

XGRIDS Lixel L2 Pro
Real-time scanning and modeling device
The new Lixel L2 Pro combines LiDAR, visual, and IMU modules with AI, delivering real-time point cloud data that rivals post-processed quality, ushering in the “zero post-processing era” for SLAM devices.
- Rotating LiDAR
- Dual 48MP panoramic vision, no external cameras needed
- High-precision 6DOF IMU
- Multi-SLAM joint optimization, maximizing performance
True SLAM with real-time output
L2 Pro delivers real-time point cloud data that rivals the accuracy of L2’s post-processing, with no waiting—instantly ready for use.

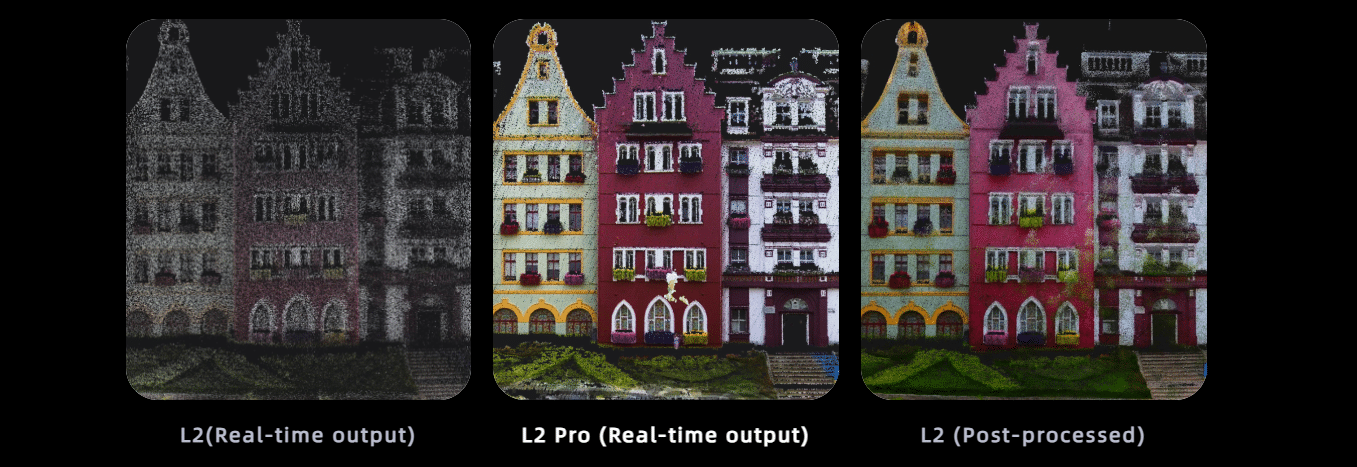

The real-time coloring effect rivals post-processing quality
L2 Pro (Real-time output)
- Absolute Vertical Accuracy: 3cm
- Absolute Horizontal Accuracy: 3cm
- Relative Accuracy: 2cm
Real-time data with absolute coordinates
The LixelUpSample™ algorithm:
Generating photo-quality color point clouds
- 1 million points/㎡ with 1mm spacing for dense point clouds, capturing every detail with precision.
- 5mm point cloud thickness for more accurate mapping and line drawing.
Ultra-high color accuracy for photo-quality color point clouds.
Reliable SLAM for complex environments
Exclusive Multi-SLAM algorithm enhances adaptability and reliability in challenging environments:
Provides continuous absolute coordinates in satellite-signal-limited areas like indoors or underground.
Ensures stable mapping in degraded environments such as subways and tunnels
A seamless, user-friendly, and reliable workflow
Precision verification report
Direct phone connection
One-click GCP marking process
Maximize usability and flexibility
- Extension pole
- RTK
- Phone mount
- Supporting harness
- Drone mount
- Vehicle mount
LixelGo App
The Lixel Companion App
Capture everything about Lixel
Simple control with one screen, one-click operation. Full process operations, such as RTK configuration and re-scanning of breakpoints. Real-time visualization of camera images, elevation information, and true-color point clouds to avoid incomplete or incorrect data collection. Complete visualization of collection status, such as battery power, network, memory, and range.
LixelStudio 3.0
All-in-One Point Cloud Processing Software
Specifications
System Parameters
|
Parameter
|
Specification
|
|
Weight
|
1.7kg
|
|
Interfaces
|
USB 3.1 Gen2
|
|
Dimensions
|
180mm × 130mm × 400mm
|
|
Storage
|
1T SSD
|
|
Outer Casing
|
Industrial-grade aluminum
|
|
Continuous Operating Time
|
1.5h
|
|
Energy Consumption
|
<30W
|
|
Wireless Connection
|
Supports WiFi, Bluetooth (802.11a/b/g/n/ac, 2.4G & 5G)
|
Environment and Functions
|
Parameter
|
Specification
|
|
Operating Temperature
|
-20°C to 50°C
|
|
Degree of Protection (IP)
|
IP54
|
|
Visual Positioning
|
Supported
|
|
Real-Time RTK Fusion
|
Supported
|
|
Real-Time RGB
|
Supported
|
|
Parameter
|
Specification
|
|
Absolute Vertical Accuracy (RMSE)
|
3cm
|
|
Absolute Horizontal Accuracy (RMSE)
|
3cm
|
|
Relative Accuracy (RMSE)
|
1cm (Processed) / 2cm (Real Time)
|
|
Thickness of the Point Cloud
|
0.5cm
|
|
Horizontality (with RTK)
|
0.015°
|
|
Verticality
|
0.03°
|
|
Repetition Accuracy (RMSE)
|
2cm
|
|
LixelUpSample
|
Supported
|
|
Parameter
|
Specification
|
|
Operating Range
|
0.5m ~ 120m / 0.5m ~ 300m
|
|
Scan Frequency
|
320,000 pts/s / 640,000 pts/s
|
|
LiDAR sensor
|
Class 1 / 905 nm
|
|
Sensor Field of View (FOV)
|
360° × 270°
|
|
Parameter
|
Specification
|
|
Resolution (Panoramic Images)
|
2 × 48MP
|
|
CMOS sensor
|
1/2″
|
|
Focal Length
|
2mm
|
|
Shutter
|
Rolling shutter (Panoramic) / Global shutter (Positioning)
|
|
Opening
|
F/2.0
|
|
FOV (Panoramic Camera)
|
190° × 190°
|
|
Panoramic Image Resolution
|
Max. 56MP
|
|
Resolution (Visual Positioning)
|
1 × 1MP
|
|
FOV (Visual Positioning)
|
190° × 119°
|
|
Parameter
|
Specification
|
|
Voltage
|
14.4V
|
|
Capacity
|
46.8Wh
|
|
Charging Input
|
100V240V, 5060 HZ 1.5A 80VA
|
|
Nominal Power
|
34W
|
|
Parameter
|
Specification
|
|
Point Cloud Formats
|
.las
|
|
Image Formats
|
.jpg
|
